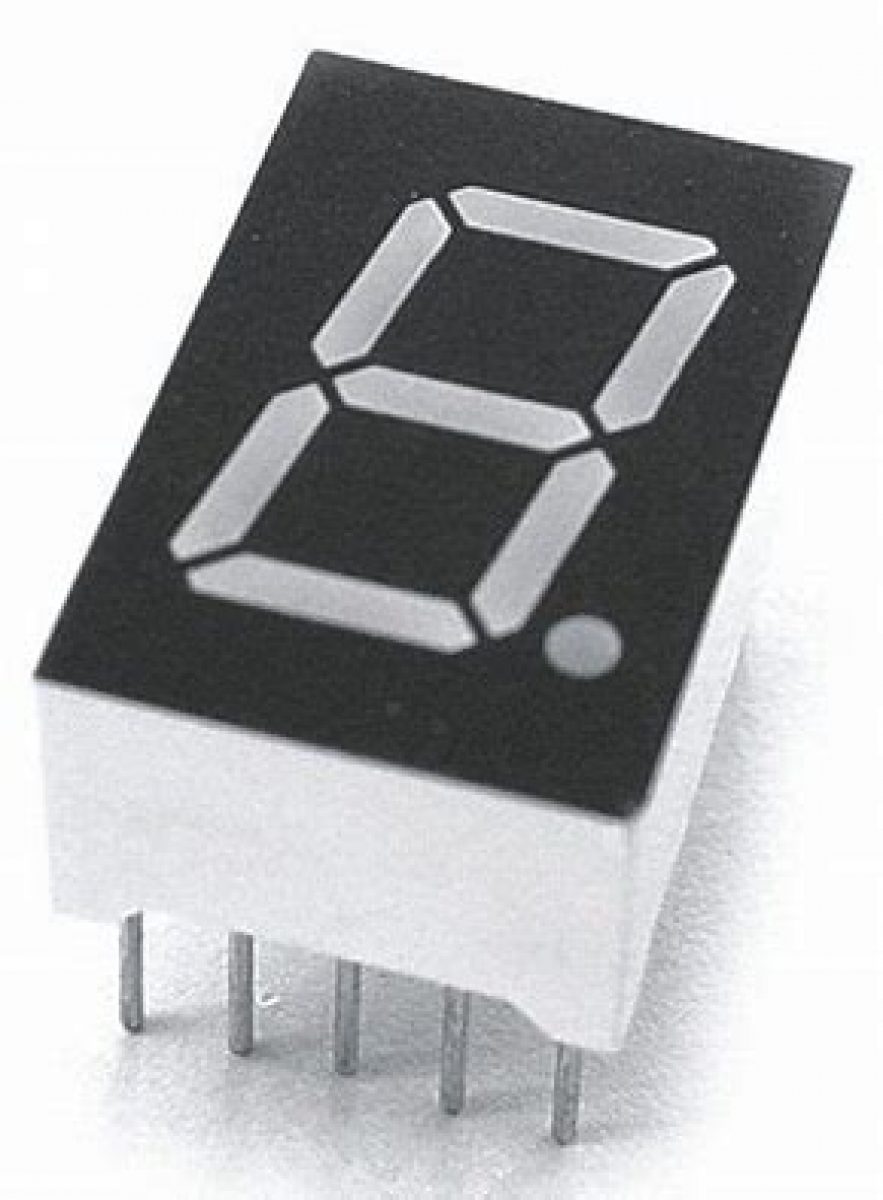

7 Segment Common Anode

Imagine you’re standing in front of a complex piece of electronic equipment, and you notice a vibrant display of numbers gleaming like the stars in the night sky. These numbers aren’t just any ordinary digits; they’re bright and colorful, each segment illuminated in perfect harmony. Welcome to the fascinating world of 7-segment displays, specifically the common anode variety. If you’re up for a playful challenge, see if you can identify the fundamental differences between common anode and common cathode displays before you reach the end of this article. Ready? Let’s dive into the components and workings of the common anode 7-segment display!

The 7-segment display is a remarkable invention utilized extensively in electronic devices, providing a straightforward and efficient means of conveying numerical information. Primarily, these displays consist of seven individual segments, shaped like the letter “E.” Each segment can be illuminated independently to form digits from 0 to 9 or even some letters, depending on the creativity of the designer. However, it’s the common anode configuration that offers a unique twist in their operation.

At the heart of the common anode 7-segment display lies a singular anode pin from which all segments derive their power. This contrasts with a common cathode display, where all cathodes are interconnected. But what does that mean for you? It implies that to turn on a segment in the common anode design, you must pull the corresponding segment pin LOW (to a lower voltage). This inconspicuous twist in design philosophy leads to intriguing implications for circuit design and implementation.

To better understand this concept, imagine you are the conductor of a grand orchestra. The common anode is your podium, representing the collective power source from which your orchestra draws. Each musician, symbolizing a segment, awaits your instruction. When you direct them to play (or “turn on”), you essentially lower the sound to create harmony. Each segment thus becomes a participant in creating a visual ensemble that effectively communicates numbers.

One significant advantage of the common anode display is its suitability in multiplexing applications. Multiplexing enables multiple displays to share a single set of driving pins, minimizing the space and complexity of the circuitry. In this scenario, you can light up various segments at staggered intervals, ultimately creating the illusion that all digits are displayed simultaneously. This technique is particularly invaluable in larger displays, such as those used in calculators and digital clocks.

In terms of connections, a 7-segment common anode display typically features 8 pins. Seven pins correspond to the individual segments labeled A through G, while the eighth pin is the common anode. It’s essential to ensure that each segment is connected to a resistor to prevent excess current from flooding the pin, thus safeguarding the display from inevitable damage. The use of a resistor acts as a guardian, capping the flow and ensuring robotically orchestrated harmony within your circuits.

Let’s pivot to practical applications where the common anode 7-segment display shines bright. In digital watches, electronic meters, and a plethora of other numeric interfaces, they serve as visual indicators, displaying everything from elapsed time to financial figures. Their legibility and instant clarity make them a favored choice among engineers and designers. With a simple glance, users can glean crucial information that may significantly impact decision-making.

For those venturing into creating their own electronic projects, integrating a common anode 7-segment display can be an exhilarating endeavor. You might use a microcontroller like an Arduino or Raspberry Pi, programmed to manipulate the segments based on user inputs. The foundational code involves defining which segments to illuminate to form specific digits. As the programmer, you have the reins of creativity, enabling you to experiment with light displays and dynamic outputs.

Should you find yourself inclined toward the technicalities of these devices, understanding the electrical characteristics is paramount. The forward voltage drop often ranges between 1.9V to 3.2V, depending on the type of segment. Additionally, you’ll want to incorporate current limiting to ensure each segment operates within optimal parameters—typically, around 20mA suffices for each segment, but individual applications may vary dramatically based on requirements. Here, meticulous attention to detail equates with reliability.

In conclusion, the common anode 7-segment display stands as a beacon of innovation and utility in the realm of electronics. With its ability to convey numerical information with clarity, it has found itself entrenched in countless devices. Whether you are an ardent hobbyist, a budding engineer, or simply captivated by technology, exploring the workings of a common anode display can be an exhilarating journey. So, did you manage to decipher the differences between common anode and common cathode setups? The challenge always beckons in the realm of electronics; are you ready to embrace it?
