Types Of Compressor Fittings
Imagine a mood-boosting experience where the whir of a compressor signifies not just the power of machinery, but the liberation of creativity and productivity. Such a sense of accomplishment can often be traced back to one crucial aspect of compressor operation: the fittings. Compressor fittings serve as the unsung heroes in the world of pneumatic tools. They are integral to ensuring that air is distributed efficiently, effectively transforming energy into actionable results. Here, we delve into the various types of compressor fittings that are essential for every air compressor setup, guiding you through their unique functionalities and applications.
Before embarking on this journey, it is essential to understand the fundamental role of air compressor fittings. These fittings facilitate the connection between the compressor and the tools that utilize compressed air. The right fittings help prevent leaks, ensure optimal pressure, and achieve seamless connectivity. With this foundation, let us explore the types of compressor fittings that suit different applications and scenarios.

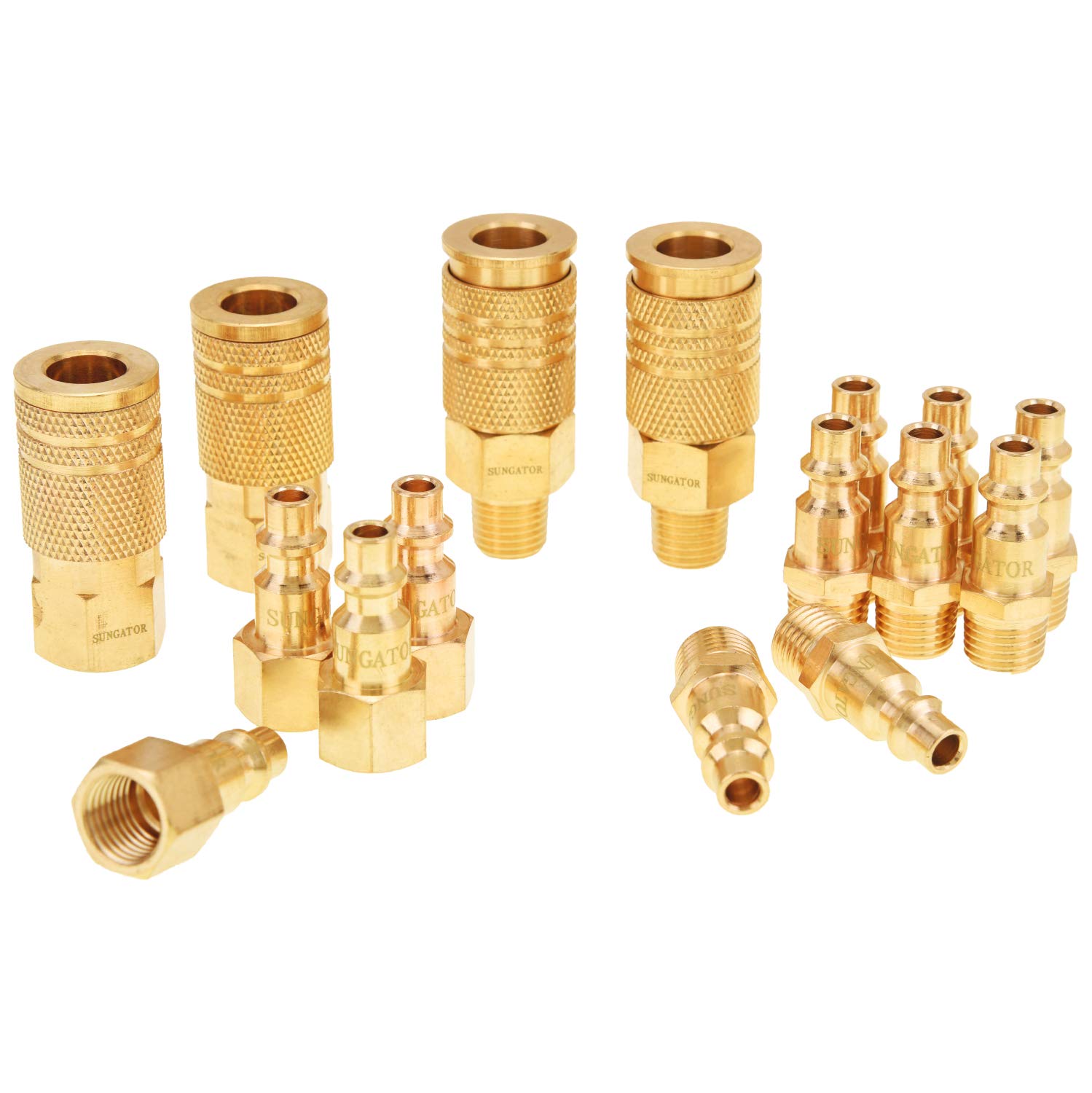

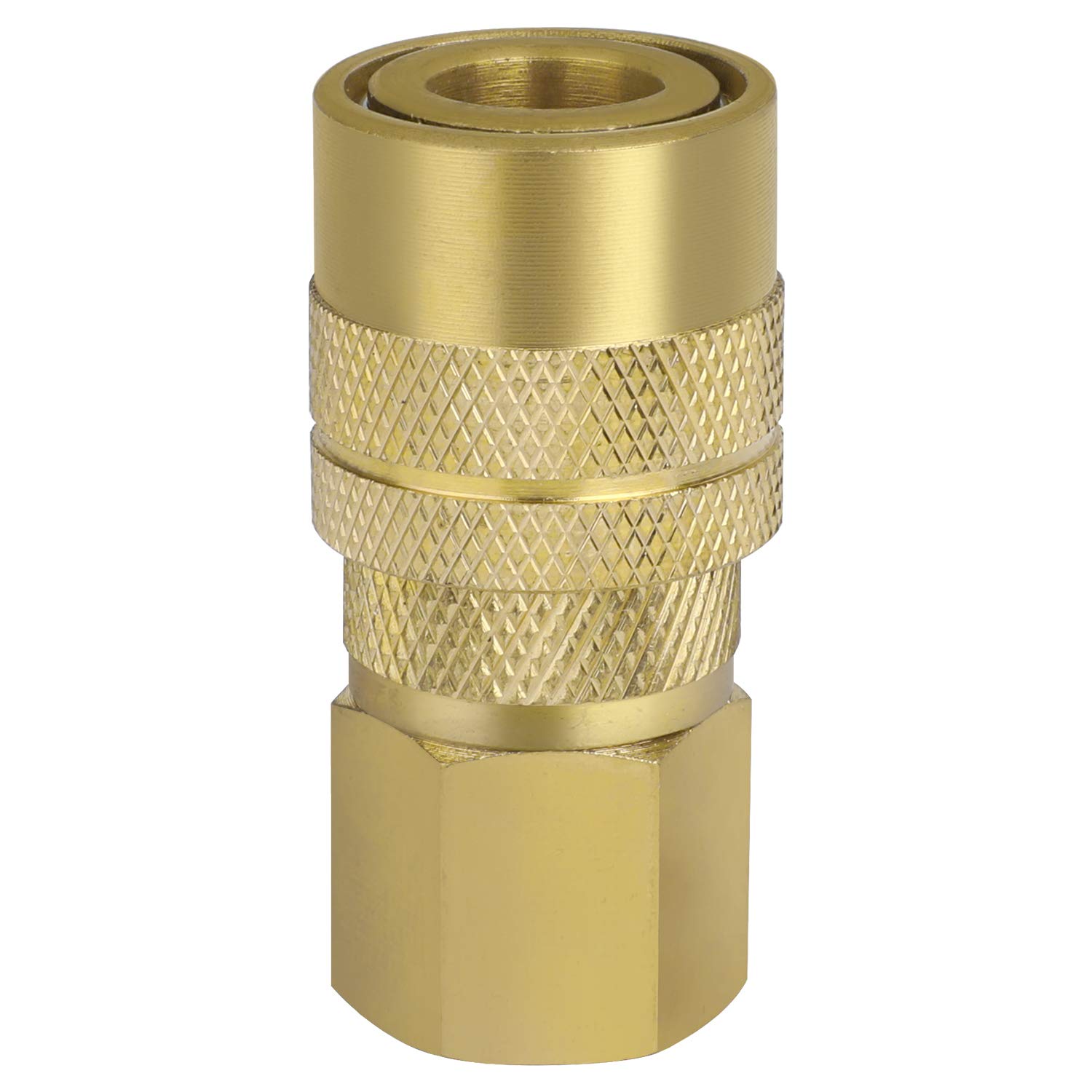

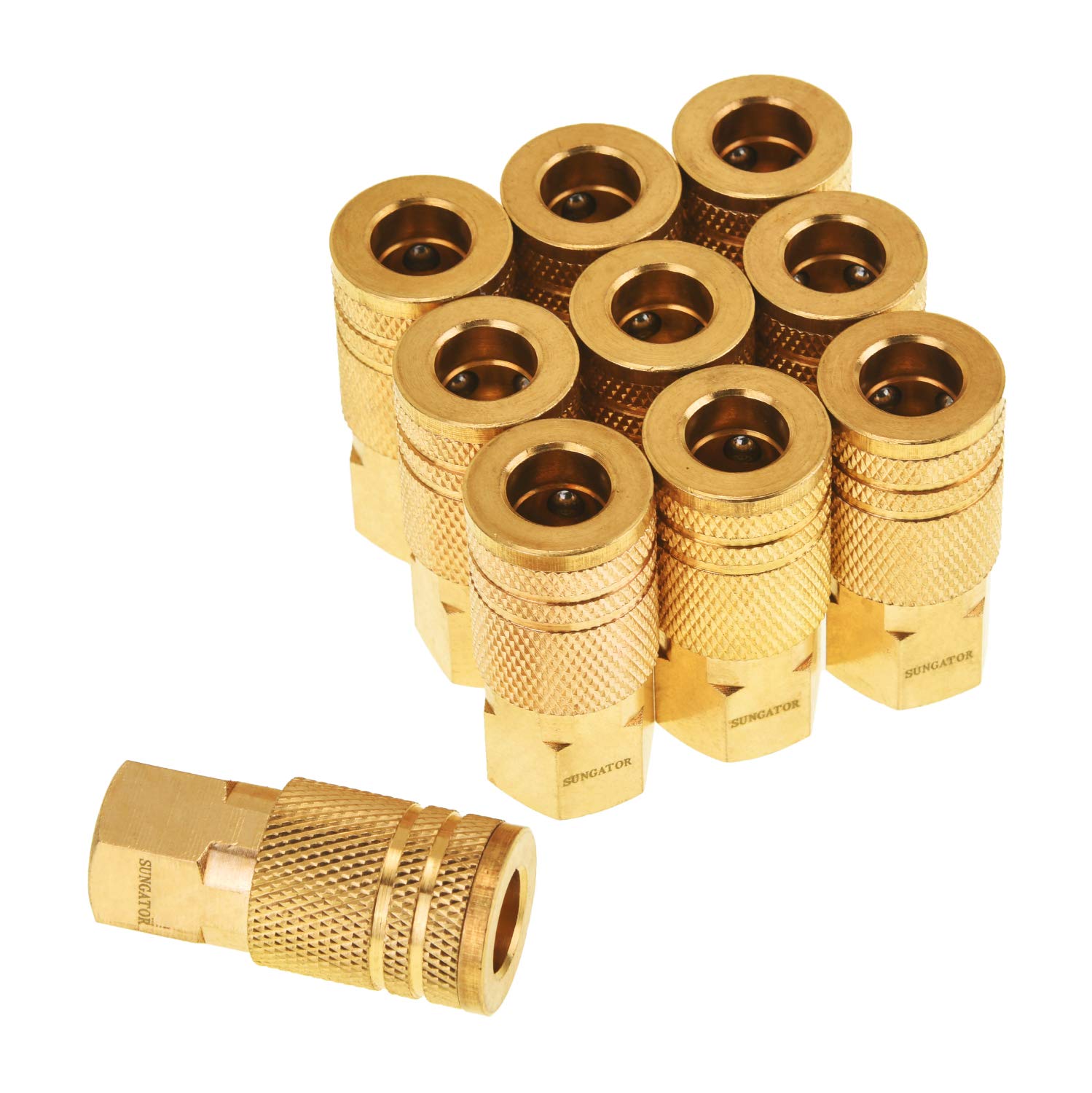

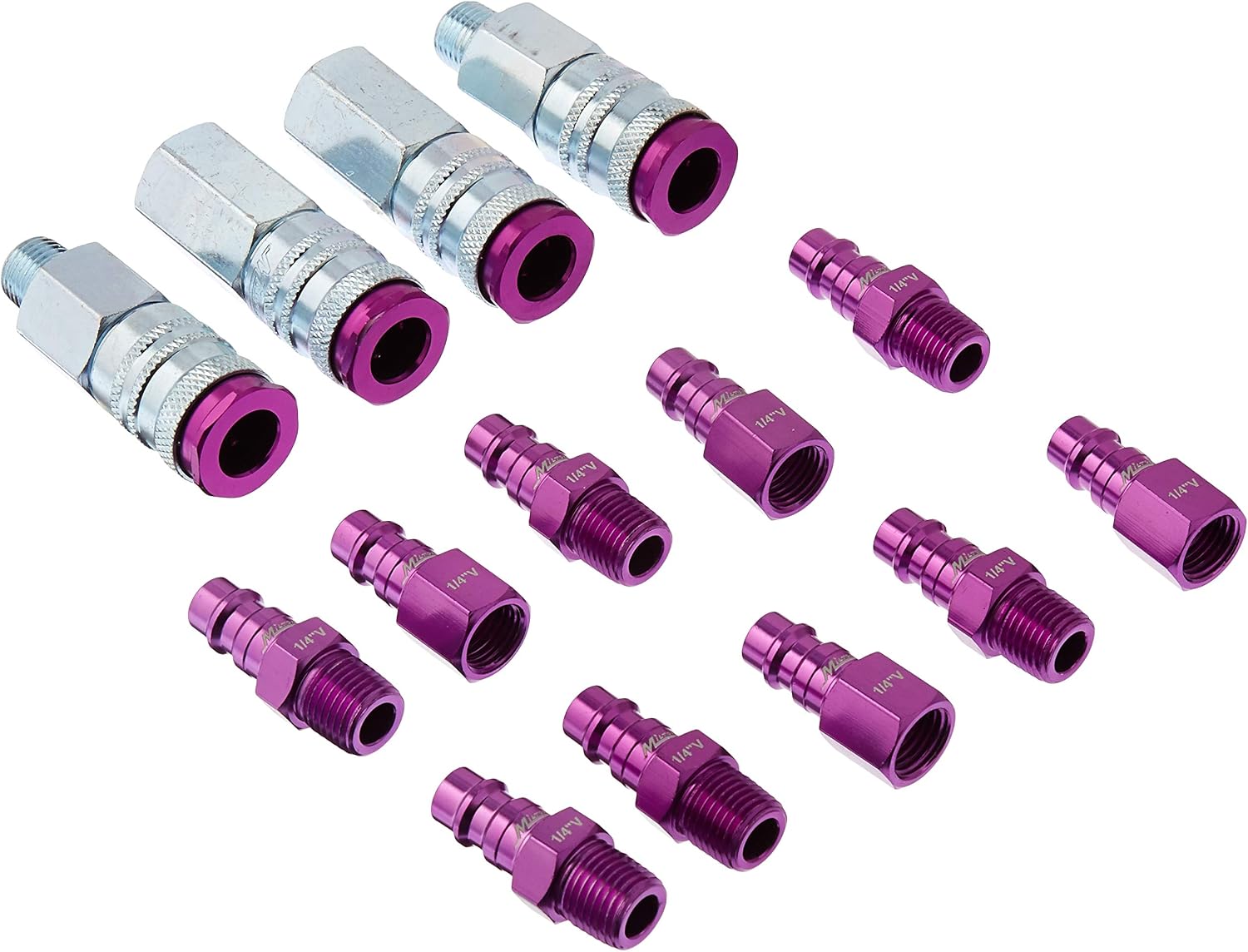

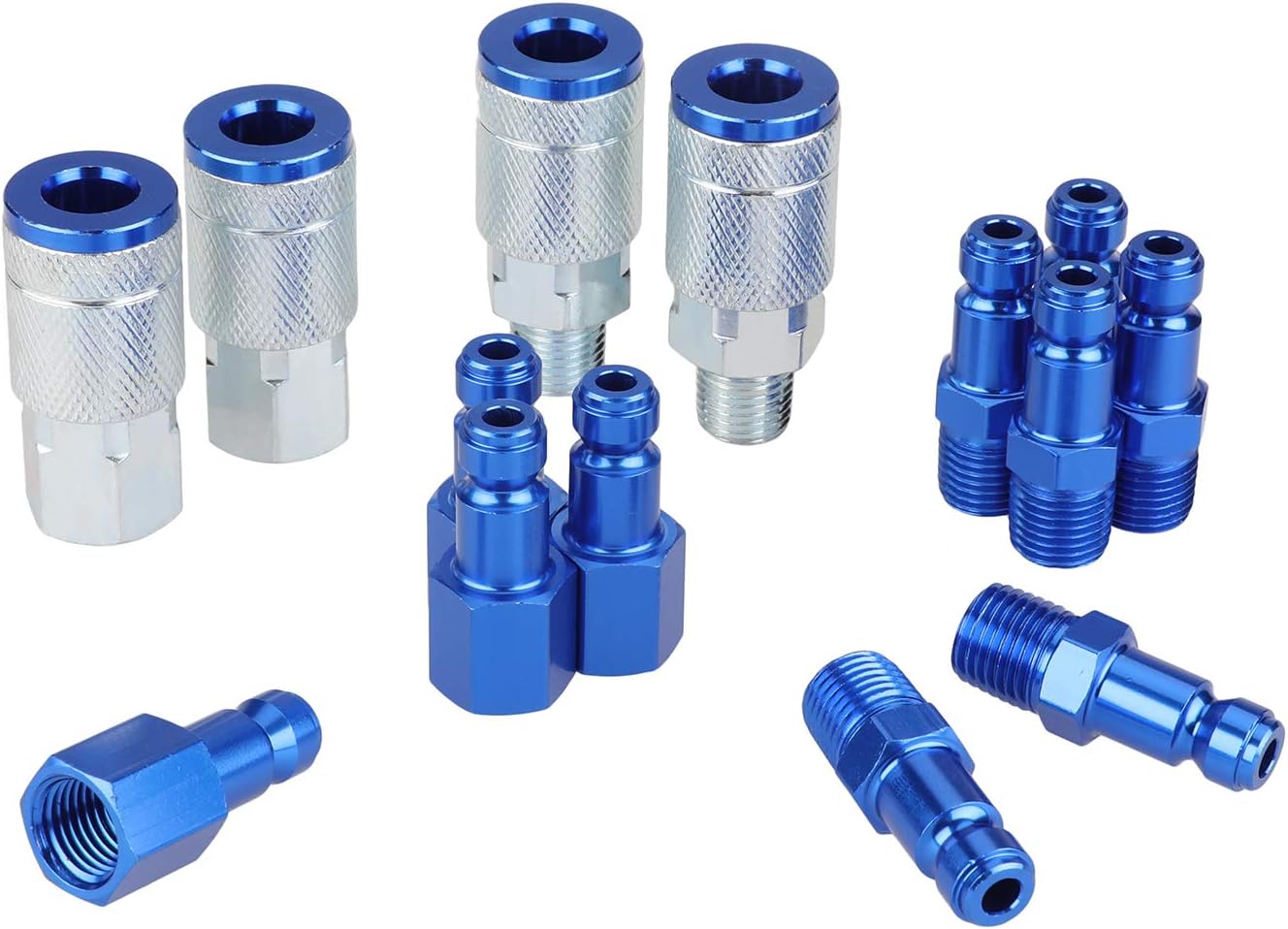

1. Quick Connect Couplers
Quick connect couplers epitomize convenience and efficiency. These fittings allow for rapid attachment and detachment of hoses and tools without the need for wrenches. Their design features a simple push-to-connect mechanism that enhances workflow and minimizes downtime. Available in various sizes and pressure ratings, quick connect couplers are commonly found in both residential and industrial applications. Additionally, they come in two primary categories: male and female couplers. Understanding which type you need for your specific setup can dramatically influence your compressor’s performance.
2. Barb Fittings
Barb fittings are characterized by their simple yet effective design, featuring a barbed end that grips onto hoses. They are often used to connect a flexible hose to a rigid pipe or another hose. The friction fit created by the barbs ensures a secure connection, although hose clamps are frequently recommended for additional stability. Ideal for low- to medium-pressure applications, barb fittings are frequently employed in pneumatic systems where vibration and movement might compromise connection integrity.
3. Threaded Fittings
In the world of pneumatic tools, threaded fittings reign supreme due to their robustness and dependability. These fittings utilize standard pipe threads (NPT) to create a secure, leak-proof connection. Available in a variety of materials, including brass and stainless steel, threaded fittings can withstand high pressures and are less prone to wear and tear. Their versatility is unmatched, making them suitable for a wide range of tasks—from connecting compressors to air tanks to integrating various pneumatic tools.
4. Compression Fittings
Compression fittings offer a secure method of connecting tubing by utilizing a compression mechanism to create a seal. Often crafted from durable materials like copper or brass, they are known for their ability to maintain integrity under pressure. Unlike some other fitting types, compression fittings do not require additional sealing materials, eliminating the risk of leaks. These fittings can be particularly advantageous in applications where space is limited or where vibration might cause other types of fittings to loosen over time.

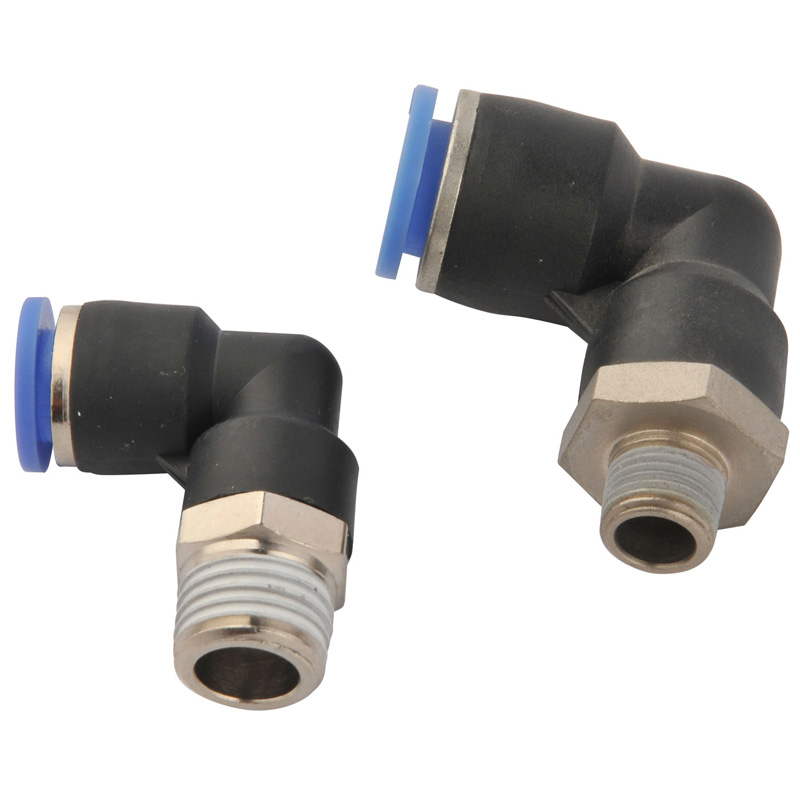

5. Push-to-Connect Fittings
Push-to-connect fittings, also known as push-fit or push-in fittings, are a remarkable innovation in the fittings market. They permit effortless connections without the need for tools or additional hardware. The installation process involves simply pushing the tubing into the fitting, creating a secure seal. This type of fitting is particularly advantageous for pneumatic systems, as it allows for rapid assembly and disassembly. Ease of use and efficiency make push-to-connect fittings a popular choice among DIY enthusiasts and professionals alike.
6. Universal Fittings
Universal fittings are designed to accommodate various hose sizes and fitting types, offering unparalleled versatility. They typically include multiple inlet and outlet options, making them a handy addition to any toolbox. While convenient, care should be taken to ensure compatibility with your specific air compressor and tools. As air pressure fluctuates, the adaptability of universal fittings can be particularly beneficial in dynamic work environments.
7. Drum and Tank Fittings
Specialized drum and tank fittings are indispensable when it comes to transferring compressed air from tanks or drums. These fittings often feature a larger diameter to allow for efficient airflow and minimize back pressure. Tank fittings can include relief valves to ensure safety during operation, making them crucial for managing high-pressure situations. Understanding how to select and install these fittings is pivotal for anyone looking to harness the full potential of their compressor setup.
In conclusion, the interplay between different types of compressor fittings is integral to creating a cohesive and functional pneumatic system. Each type serves distinct purposes, thus allowing for a tailored approach to air management. Properly selecting and installing the right fittings not only enhances equipment performance but also contributes to a more efficient workflow. Whether you are a seasoned professional or a curious novice, understanding and implementing the appropriate fittings can transform the mundane operation of an air compressor into an empowering and mood-boosting experience. Harness the potential that comes with the right connections, and elevate your projects to new heights.
